If you need reliable pneumatic control that prevents cylinder drift and maintains position in neutral, a pilot operated check valve is the right choice. These valves use a pilot signal to hold a check valve seated, blocking reverse flow when the main valve is centered. This article highlights five top options, focusing on what type of buyer each product suits best. You’ll see clear use cases, pros and limitations, and practical buying tips to help you compare quickly.
| Product | Best For | Key Value |
|---|---|---|
| Yoebor 1/4″ OD Check Valve | Compact, budget-friendly air lines | Push-to-connect inline design |
| NUMATICS NCPGG-022-022 3/8″ NPT | Industrial air systems needing pilot-operated action | 3/8″ NPT ports |
| DIFFGYSAN 1/4″ OD Check Valve | Simple quick-plug style for hoses | Copper nickel plating |
| Fluidhaus Pilot Operated Check Valve, D03 | OEM-like reliability with top-mill mounting | 13 gpm, 3045 psi |
| Langzeze Pilot Unloader Check Valve Replacement | Repair or upgrade for compressors | Brass construction, 300 psi |
Yoebor 1/4″ OD Check Valve Pack
Type and scope: These push-to-connect inline air check valves use nickel-plated brass and plastic. They admit air and vacuum and are sized for 1/4″ tube OD. Best for compact lines where quick installation and ease of replacement matter.
- Best for small-diameter pneumatic circuits with frequent sensor or actuator changes.
- Limitations: Not designed for high-volume or high-pressure industrial systems beyond typical 0-150 psi range.
NUMATICS NCPGG-022-022 3/8″ NPT Check Valve
This 3/8″ NPT, pilot-operated check valve is suited for mid-size air circuits requiring reliable hold-in-position control. The unit’s basic check valve functionality with a pilot input helps prevent drift when a directional valve is centered.
- Best for: Standard industrial air lines needing dependable neutral-position locking.
- Limitation: Data emphasizes basic porting; ensure pilot ratio fits your control valve design.
DIFFGYSAN 1/4″ OD One-Way Air Check Valve
Material and compatibility: Copper nickel plating, 1/4″ tube OD. This valve is suitable for tight spaces and quick-assembly pneumatic lines where a simple one-way check suffices and a pilot signal is not required for all operations.
- Best for: Quick, low-cost inline check needs without complex pilot control.
- Limitation: Not a true pilot-operated valve; suitability depends on system design.

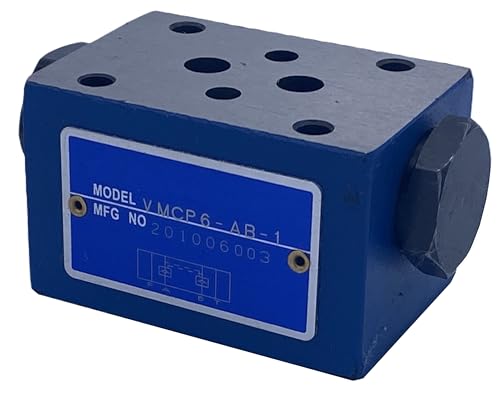

Fluidhaus Pilot Operated Check Valve, D03 Module
Performance and integration: This module is a robust pilot-operated check valve with a compact design, intended for high-volume OEM setups. It comes with mounting bolts for direct valve-top mounting and a high-capability pressure rating up to 3045 psi and flow up to 13.1 gpm.
- Best for: OEM applications needing durable, top-mounted pilot-controlled locking.
- Limitation: Slightly larger footprint; verify mounting clearance on your valve stack.
Langzeze Pilot Unloader Check Valve Replacement
Application and build: This replacement offers solid brass construction and a 300 psi safety valve integration. It is designed to fit certain compressor systems and to restore the original performance with a pilot unloader and check valve in one unit.
- Best for: Replacements in gas-powered or industrial compressors needing a durable pilot-assisted check.
- Limitation: Not a universal fit; verify port types and thread sizes before purchasing.
Buying Guide: Choosing The Right Pneumatic Pilot Operated Check Valve
To select the best valve for your system, consider port size, connection type, and operating pressure. A pilot-operated valve relies on a control signal to seat the check valve, so match the pilot ratio and port configuration to your control valve and actuator needs. If space is limited, inline push-to-connect or compact quick-plug models may be preferable. For higher flow or demanding industrial environments, choose brass or stainless options and verify maximum PSI and compatibility with your air supply.
- What port size do I need? Choose ports that match your tubing or threaded connections (e.g., ¼”, ⅜”, NPT or SAE).
- Do I require a pilot signal? If so, confirm the pilot ratio and control valve compatibility to ensure reliable actuation.
- What is the environment? Brass or nickel plating offers corrosion resistance; consider moisture and chemical exposure.
- Where will it be mounted? Do you need top-mount compatibility or mounting bolts included?
- What is the expected duty cycle? Higher flow and pressure ratings suit continuous or OEM applications.
