Needle roller and cage assemblies deliver high-load capacity in compact spaces, making them ideal for precision equipment, automation guides, and compact gear mechanisms. This guide highlights five top options, explains who each is best for, and notes any limitations to consider. Use these details to choose a model that matches your space constraints, load requirements, and material compatibility.
Summary of selected products:
- SKF BH1250 Needle Roller and Cage Assembly SLH12501 (32×41.28×32 mm) – best for high-precision, compact applications requiring robust guidance.
- Torrington B308 Needle Roller and Cage Assembly B-308 (47.63×57.15×12.70 mm) – best for relatively large axial clearance with dependable performance.
- uxcell K121513 Needle Roller and Cage Assembly (12 mm bore, 15 mm OD, 13 mm width) – best value option with standard dimensions and PA66 cage.
- NTN Japan K28X33X13 Needle Roller Bearing and Cage Assembly (28x33x13 mm) – best for mid-size, high-load scenarios where compact design matters.
- NKIA5910-XL INA Needle Roller and Cage Assembly (50x72x30 mm) – best for larger guides needing higher stiffness and precision.
SKF BH1250 Needle Roller and Cage Assembly
Best for: High-precision, compact-guidance applications where space is limited and load capacity is critical. The SKP BH1250 line is designed for smooth operation with tight tolerances, making it a solid choice for machine tools and automation guides.
Why selected: The 32×41.28×32 mm size fits tight layouts, and the needle roller design distributes stress efficiently for stable motion. This option is favored when consistent, low-friction performance is essential.
Caution: Availability or compatibility with non-SKF housings may require adapters or matching cages. Confirm fits with your existing assembly before purchase.
Torrington B308 Needle Roller and Cage Assembly
Best for: Applications requiring a mid-sized needle roller with dependable performance in demanding environments.
Why selected: The B308 dimension set provides a balance of size and load capacity, suitable for medium-scale guides and linear actuators.
Caution: Ensure the cage material and needle rollers are compatible with your lubrication and operating temperature to prevent premature wear.
uxcell K121513 Needle Roller and Cage Assembly
Best for: Budget-conscious buyers needing standard dimensions with decent load capacity.
Why selected: The K121513 offers a compact bore-to-outer-diameter ratio, with a PA66 cage and chrome steel needles, delivering good stiffness and loading at a lower price point.
Caution: PA66 cages may limit high-temperature performance; verify operating conditions align with material specs.
KOYO Germany K15X19X10 Needle Roller and Cage Assembly
Best for: Small, high-precision components where space is at a premium and guidance must be compact yet rigid.
Why selected: The 15x19x10 mm size supports compact assemblies while providing reliable load distribution, suitable for miniature linear guides and precision stages.
Caution: Ensure the cage and roller materials match your lubrication scheme to avoid galling or sticking in tight tolerances.

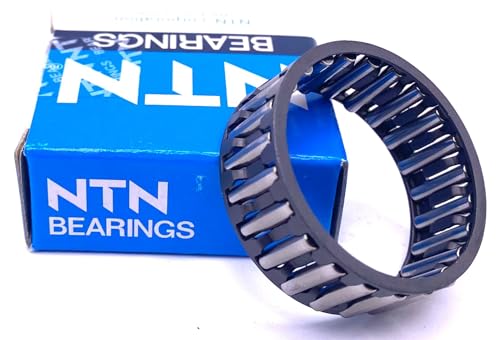

NTN Japan K28X33X13 Needle Roller Bearing and Cage Assembly
Best for: High-load axial support in compact spaces where vibration and noise must be minimized.
Why selected: The K28X33X13 assembly is designed for high axial load capacity with a reduced cross-section, aiding installation in restricted spaces.
Caution: Verify compatibility with your lubrication type and mounting orientation to maximize life in high-dynamic settings.
NKIA5910-XL INA Needle Roller and Cage Assembly
Best for: Larger guide systems needing high stiffness and stable, smooth motion.
Why selected: The NKIA5910-XL offers dimensions of 50x72x30 mm, matching bigger assemblies where robust guidance is critical.
Caution: Larger components require careful fit in housing; misalignment can offset performance benefits.
Buying Guide: Needle Roller and Cage Assemblies
What size do you need?
Measure bore, outer diameter, and width to ensure a proper fit with your housing and rail. Larger dimensions provide greater rigidity but require more space. For compact machines, favor smaller, well-supported assemblies with proven load ratings.
Material and load considerations
Common options include chrome steel rollers with steel cages (high load, good wear resistance) and PA66 cages (lighter, lower cost, adequate performance for lighter loads). Consider static and dynamic load requirements, as well as operating temperature and lubrication compatibility.
Open vs. closed or reinforced cages
Open cages are easier to lubricate but may be less protective in dirty environments. Closed or reinforced cages can resist contamination and offer steadier motion in challenging conditions.
Lubrication and maintenance
Check whether the assembly requires relubrication intervals and compatible lubricants. Some designs are sealed for life; others benefit from periodic oil or grease lubrication to extend life in dynamic applications.
Orientation and mounting
Ensure the needle rollers align with the intended load direction. Improper orientation can cause uneven wear and reduced load capacity. Confirm the mounting hardware or adapter compatibility with your existing system.
Summary comparison
- Best overall compact option: SKF BH1250 – tight fit, high precision.
- Best for mid-size, dependable duty: Torrington B308.
- Best budget-friendly: uxcell K121513.
- Best for mid-range high load: NTN K28X33X13.
- Best for larger guide systems: NKIA5910-XL INA.
Frequently Asked Questions
- What is a needle roller and cage assembly used for?
They provide low-friction guidance and high load capacity in compact spaces, commonly used in linear guides, automation equipment, and precision machinery.
- How do I choose the right size?
Match bore, outer diameter, and width to your housing and rail, then verify acceptable clearances and mounting fit.
- Are sealed or unsealed options better?
Sealed (or life-sealed) options suit clean environments; unsealed options may require periodic lubrication in dirty or dusty settings.
- What materials should I expect?
Common choices include chrome steel rollers with steel cages or PA66 cages. Material impacts load capacity, temperature tolerance, and lubrication needs.
- Can these assemblies be retrofitted into existing guides?
Retrofits depend on exact dimensions and mounting patterns. Confirm compatibility with your current rails, housings, and fasteners before buying.
- What maintenance schedule is typical?
The need for relubrication and inspection intervals varies by environment and load; follow manufacturer recommendations and inspect for wear during operation.
