Looking for an integrated servo motor and drive solution that simplifies wiring, minimizes footprint, and delivers precise closed-loop control? This guide highlights five top options that combine motor, encoder, and drive into a single compact unit. Ideal for robotics, CNC, AGV platforms, and automated tooling where space, noise, and reliability matter. The buyers best served are system integrators, machine builders, and hobbyists seeking plug‑and‑play servo solutions with built‑in control.
| Product | Type | Best For | Key Benefit |
|---|---|---|---|
| Hybrid Servo Drive System | Robotics and CNC routers requiring 24-48V supply | Closed-loop control with 1000‑line encoder for out-of-step protection | |
| Integrated FOC Servo Hub | AMR/AGV platforms needing quiet, compact drive | High-precision 4096-line encoder and built-in FOC | |
| CAN Bus Integrated Servo | Multi-motor systems with CAN networking | Encoder, motion controller, and driver in one aluminum housing | |
| Integrated CAN Servo System | CNC routers, 3D printers, engraving | Closed-loop motion with high speed to 1000 rpm | |
| Integrated CAN Servo with Multi-Turn Encoder | High-torque, high-precision tasks | 17-bit single-turn and 32-bit multi-turn encoder for power-off memory |
CNCTOPBAOS JSS57P2N Nema 23 Integrated Hybrid Servo Drive System
The CNCTOPBAOS JSS57P2N combines a Nema 23 sized motor with a 1000‑line encoder and a 32‑bit DSP closed‑loop servo drive. It supports a 24-48V DC supply (recommended 36V) and includes RS232 Modbus RTU communication for position and speed control. Best for compact automation tasks requiring precise synchronization and anti-slip performance in a single package. Suitable for small CNC routers, cutting, marking, and robotics where integrated drive reduces wiring complexity.
Best for: small to mid-sized automated systems that need reliable closed-loop control with a simple RS232 interface and a compact footprint.
Caution: Data shows a 4‑wire lead and a 57x57x76mm motor package; ensure your enclosure can accommodate the total length and wiring routing for DC power and RS232 cabling.
DFROBOT M0601 Direct-Drive Hub Motor for AGV Right Orientation
This 102mm hub motor houses a brushless DC motor, an advanced FOC servo driver, and a high‑precision encoder in a plug‑and‑play package. Built for autonomous platforms, it offers a compact, integrated solution with no external drive board wiring. With a 4096‑line encoder and FOC control, it delivers smooth motion at low speeds and precise odometry for navigation tasks.
Best for: service robots and ROS-enabled AMR/AGV systems requiring quiet operation (<50dB) and tight integration of drive and control in one unit.
Caution: This unit is designed for integrated setups; if you need multiple axis coordination, ensure your network supports CAN/RS485 style interfaces used in your system.
UIROBOT NEMA 23 Integrated Servo Stepper Motor with Built‑in Encoder (UIM5756CM)
UIROBOT offers a NEMA 23 integrated servo system that includes an encoder, motor driver, and motion controller in a rugged aluminum housing. It uses CAN BUS for motor-to-motor communication and supports adjustable current (1-2.8A). With a 1.26 N·m holding torque and a wide 24-48V DC supply, it enables low-vibration, high-torque motion ideal for precise positioning in compact fixtures.
Best for: multi-motor systems that need CAN networking and ready-to-run servo control in a single package.
Caution: While compact, verify CAN bus topology and software compatibility with your controller before integration.
TOSEASTARS NEMA 23 Integrated Servo Motor Kit
The TOSEASTARS kit delivers a complete NEMA 23 integrated servo system with a 57x57x76mm motor, encoder, and driver in one CAN-enabled package. It supports closed-loop operation with fast response and high-speed capability up to 1000 rpm. The kit design emphasizes a compact form factor suitable for CNC routers, engraving machines, and 3D printers seeking a turnkey closed‑loop solution.
Best for: users who want a turnkey closed-loop servo setup for mid‑range speed and precise control in a small footprint.
Caution: It uses CAN interface; ensure your control software can generate the required commands and that the motor current setting aligns with your power supply.

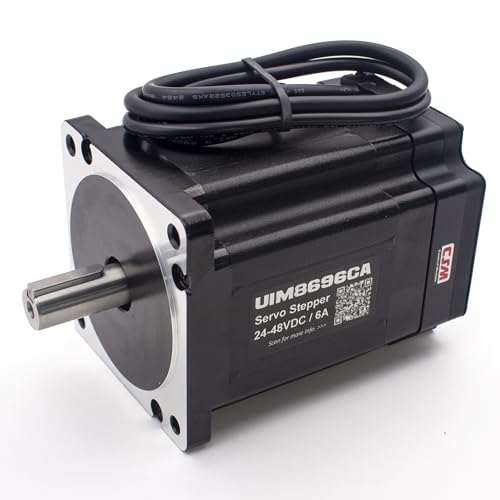

UIROBOT NEMA 34 Integrated Servo Motor (UIM8696CA)
This NEMA 34 unit combines a multi-turn absolute encoder with a closed-loop servo motion controller and a CAN bus interface. It achieves speeds up to 2000 RPM and offers 6.5 Nm peak torque with a 24-48V DC supply. The included multi-turn absolute encoder, power-off memory, and DSP core provide robust performance in demanding automation tasks requiring high torque and reliable positioning after restarts.
Best for: high-torque, high-precision applications like large CNC machines or heavy-duty robotic manipulations where accurate, repeatable positioning matters.
Caution: Higher torque units may require more substantial drivers and power supply; confirm system compatibility before purchase.
Buying Guide: Key Considerations For Choosing An Integrated Servo System
- Control interface and networking: Do you need CAN bus, RS232/RS485, or onboard DSP control? Ensure the unit’s communication aligns with your controller or PLC.
- Torque and speed range: Match the motor’s nominal and stall torque to your load, and check the maximum RPM to meet your speed requirements.
- Encoder resolution: Higher line counts improve precision; consider whether you need 1000, 4096, or multi-turn encoders for your task.
- Power supply and wiring: Verify voltage range (commonly 24-48V) and wiring harness complexity. Integrated units reduce wiring but still require proper power distribution.
- Form factor and mounting: Confirm dimensions (length, width, shaft diameter) and mounting patterns to fit your mechanical design.
- Noise and vibration: For sensitive environments, prefer models marketed as ultra-quiet or with robust vibration damping.
- Lifecycle and support: Look for documented software/SDK access and robust technical support for debugging and integration.
Frequently Asked Questions
- What is the advantage of an integrated servo motor and drive?
– It reduces wiring, simplifies installation, and provides compact packaging with built-in control for reliable closed-loop motion. - What should I consider when choosing encoder resolution?
– Higher resolution improves positioning accuracy and repeatability, but may require more processing power and cost. - Can I use CAN bus with any servo motor?
– Not every model supports CAN; check the product specifications for CAN bus availability and supported protocols. - Is a low-noise option always better for labs or offices?
– Yes, ultra-quiet operation is beneficial in noise-sensitive environments, reducing disruption and improving operator comfort. - Do integrated servo systems replace separate drivers?
– In many cases, yes, but ensure your control software and power supply are compatible with the chosen unit’s interface and current requirements. - What maintenance is required?
– Regular checks on mounting, connections, and encoder alignment help maintain accuracy; refer to the vendor’s software tools for fault diagnostics.
