When you need accurate low-pressure readings, diaphragm sealed pressure gauges offer reliable performance with minimal creep and good stabilization. This guide highlights five top options and explains who each gauge is best for, based on measurement range, materials, and mounting style. Use these picks to match your application, from air and water lines to non-corrosive gases and spraying equipment.
Overview Of Selected Gauges
Below is a quick comparison of five diaphragm sealed gauges chosen for low-pressure accuracy, durability, and versatility. The table helps buyers spot the best fit at a glance.
| Product | Dial Size | Pressure Range | Mount | Special Note |
|---|---|---|---|---|
| GOATACURA Diaphragm Pressure Gauge | 2.5″ | 0-300 psi | 1/2″ NPT Lower Mount | Dual scale—psi and MPa; corrosion resistant |
| CARBO Instruments Diaphragm Gauge | 2.5″ | 3 psi | 1/4″ NPT Lower Mount | Chrome steel case; removable lens |
| MEASUREMAN 0-5 psi Diaphragm Gauge | 2.5″ | 0-5 psi | 1/4″ NPT Lower Mount | Best for non-corrosive media |
| MEASUREMAN 0-30 in H2O Gauge | 2.5″ | 0-30 in H2O | 1/4″ NPT Lower Mount | For very low pressures; water column |
| BOGERDACK 0-5 PSI Gauge | 2-1/3″ | 0-5 psi | 1/4″ NPT Back Mount | Adjustable zero; compact |
MEASUREMAN 0-5 Psi Diaphragm Gauge
Dial size: 2-1/2″. Lower mount: 1/4″ NPT. Range: 0-5 psi. Construction uses a diaphragm-type capsule for accurate readings of air, water, or non-corrosive media to copper alloys. Best for compact installations where low pressure is critical. Caution: not designed for highly viscous or corrosive media.
MEASUREMAN 0-10 Psi Diaphragm Gauge
Dial size: 2-1/2″. Lower mount: 1/4″ NPT. Range: 0-10 psi. Suitable for accurate measurement of air, water, or non-corrosive gases. Best for small-scale systems or lab benches where quick verification is needed. Caution: max pressure should not exceed specified range to prevent dial drift.
GOATACURA Diaphragm Gauge For Spraying Equipment
Dial size: 2.5″. Range: 0-300 psi with 1/2″ NPT lower mount. Outer black 0-300 psi scale plus inner MPa scale for international use. Made with 304 stainless steel case and 316 diaphragm/spring tube/fittings for corrosion resistance. Best for painters, solvent handling, or chemical spraying. Caution: higher range means greater susceptibility to vibration if not mounted securely.
CARBO Instruments Diaphragm Low Pressure Gauge
Dial size: 2-1/2″. Range: 3 psi. Lower mount: 1/4″ NPT. Chrome steel case with removable plastic lens and brass internals. Best for gas, air, or water measurements in compact setups. Choose this if you need a robust metal case and easy lens replacement. Limitation: 3 psi range is narrow, so ensure your process pressure stays within spec.
MEASUREMAN 0-30 In H2O Diaphragm Gauge
Dial size: 2-1/2″. Lower mount: 1/4″ NPT. Range: 0-30 inches of water. Specifically suited for ultra-low pressure measurements such as gas or water column readings. Best for hydrostatic applications or bench testing where tiny pressure changes matter. Caution: inches of water scale may be unfamiliar to some users; calibration may be necessary for cross-range use.
MEANLIN MEASURE 0-5 Psi Back Mount Gauge
Dial size: 2-1/3″. Range: 0-5 psi. Back mount with 1/4″ NPT. Diaphragm-type capsule construction provides stable readings for small-scale hydraulic and pneumatic lines. Best for precise low-pressure tasks in controlled environments. Limitation: slightly unusual dial size compared to standard 2-1/2″ gauges, verify compatibility with existing mounts.

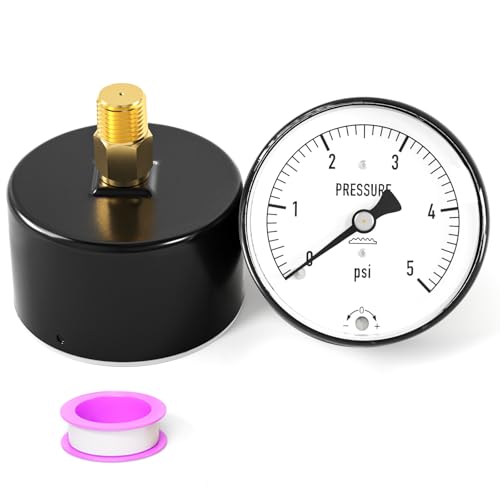

BOGERDACK 0-5 PSI Diaphragm Gauge
Dial size: 2-1/3″. Range: 0-5 PSI with adjustable zero. 1/4″ NPT back mount. Designed for air, gas, water, and other liquids with low pressure. Best for calibration tasks or setups requiring precise zero adjustment. Caution: back-mount design may require specific panel clearance and adapters for installation.
Buying Guide: Key Considerations For Diaphragm Low-Pressure Gauges
- Measurement range: Match the gauge range to your process. Low-pressure systems benefit from ranges like 0-5 psi or 0-30 in H2O for sensitivity, while some spraying tasks may demand higher ranges up to 300 psi.
- Dial size and visibility: A 2-1/2″ dial is common and balances readability with compact fit. If space is limited, consider smaller options or back-mount designs.
- Mounting style: Lower mount (NPT) is typical for inline installations; back mount suits panel mounting. Ensure the mounting type aligns with your equipment and space constraints.
- Materials and corrosion resistance: Stainless steel bodies and robust diaphragms improve longevity in harsher environments. For non-corrosive media, copper alloy-compatible parts are often fine, but verify compatibility with your media.
- Accuracy and calibration: Look for gauges with explicit accuracy spec (e.g., 1.5%, 1.6%). Remember that adjustable-zero features can help with calibration but require careful setup to avoid drift.
- Media compatibility: Choose gauges rated for air, water, natural gas, or non-corrosive liquids as applicable. Avoid highly viscous or corrosive media unless the gauge is specifically rated for it.
- Vibration and installation: Some models include anti-vibration features or glycerin-filled internals. This helps reduce pointer jitter in spray booths or noisy lines.
Frequently Asked Questions
- What is a diaphragm sealed pressure gauge best used for?
Best for low-pressure readings of non-corrosive gases, air, water, and spray equipment where stable, accurate readings are required. - Why choose a back-mount gauge over a lower-mount gauge?
Back-mount saves inline space and is easier to install on panels or equipment with back-side access. - Are all diaphragm gauges suitable for water and gas?
Not automatically. Check the media compatibility and corrosion resistance specified by each model before use. - What does “0-30 in H2O” mean in practice?
It indicates measurements in inches of water, representing very low pressure readings suitable for fine-control applications. - How important is the dial size for readability?
Generally, larger dials improve readability at a distance, but 2-1/2″ is a common compromise for compact systems. - Should I worry about accuracy specs like 1.5% or 1.6%?
Yes. Accuracy directly affects calibration, repeatability, and process control, especially in precision tasks.
These diaphragm sealed gauges provide a practical range of choices for low-pressure measurement needs. Whether you’re calibrating spray equipment, monitoring air lines, or testing waters and gases, selecting a gauge with the right mounting, media compatibility, and stability will support more reliable operation.
