Looking for automated pick-and-place options to boost production speed and consistency? This article highlights five practical products that fit common automation needs—from interchangeable head assemblies with vacuum options to integrated grippers and PCB-friendly LEDs for quick mock-ups. The selections target buyers designing or upgrading small to mid-sized assembly lines, electronics fabrication labs, or education setups who want reliable suction, modular sizing, and compact integration.
| Product | Best For | Why Selected |
|---|---|---|
| Automated Pick-and-Place Head, 28/35/42/57 Stepper Motor Assembly (Vacuum Generator Assembly) | Modular automation setups | Multi-size motor options and integrated vacuum system for flexible pick rates. |
| Automated Pick-and-Place Head, 28/35/42/57 Stepper Motor Assembly (Standard Nozzle Placement Head) | Cost-effective head replacements | Includes standard nozzle placement head with anti-rotation seat; compact kit. |
| VFG Series Mechanical Arm Gripper with Vacuum Generator (VFG30-20) | Integrated gripping solutions | All-in-one gripping, pneumatic actuation, and vacuum options in one module. |
| Automated Pick-and-Place Head, 28/35/42/57 Stepper Motor Assembly (Motor Driver FYQM302A) | Expanded drive control | Motor driver option to optimize placement cycles and precision. |
| 1206/3216 SMD Red LED – PCB Design, Pick and Place (Pack of 50) | PCB prototyping and testing | Industry-standard SMD LEDs for quick board-level placement tests. |
Automated Pick-and-Place Head with Vacuum Nozzle (28/35/42/57 Motor)
This assembly kit combines a stepper motor, anti-rotating connection seat, and an optional vacuum nozzle. It supports multiple motor sizes—28, 35, 42, and 57—allowing adaptation to different automation systems. The high vacuum suction integrates with silicone nozzles for dependable component pickup. Best for designers seeking a modular head that can be tuned for varying payloads and speeds.
Who it’s best for: small-to-midscale automation projects needing a ready-to-assemble head with flexible motor sizing. Why selected: the kit’s modular approach reduces setup friction and supports scalable line configurations. Caution: driver compatibility must be confirmed for the exact control system used.
Automated Pick-and-Place Head with Vacuum Generator (28/35/42/57 Motor)
This variant includes a complete assembly kit plus a built-in vacuum generator option. Available motor sizes (28/35/42/57) fit diverse automation layouts. High vacuum suction ensures reliable pickup of small components. Best for projects prioritizing a compact, vacuum-centric solution with fewer external components.
Who it’s best for: operations needing an integrated vacuum source within the head. Why selected: reduces piping complexity and saves space. Caution: verify compatibility with your suction nozzle type and control firmware.
VFG Series Mechanical Arm Gripper with Integrated Vacuum Generator
This module combines gripping functions with a drive cylinder and vacuum generator in one compact unit. It supports simultaneous or selective gripping and adsorption, meeting the needs of complex workpieces. Best for space-constrained lines that require fast, stable action with minimal external plumbing. Caution: integration may demand specific mounting and control interfaces.
Automated Pick-and-Place Head with Driver FYQM302A
This version provides a motor driver option (FYQM302A) alongside the standard kit. It enables better control over placement speed and precision for diverse component sizes. Best for users who need tighter control over motor behavior. Caution: ensure the driver firmware supports your controller architecture.
Pneumatic 4-Jaw Flexible Soft Gripper
This soft gripper uses four flexible jaws and a compact air cylinder to gently grip a variety of objects. It supports high-speed operation and is suitable for automated handling, assembly lines, and lab work. Best for delicate or irregularly shaped parts. Caution: the soft jaws may require material-specific tuning for very small items.
1206/3216 SMD UV/Purple LED (Pack of 10)
Industry-standard 1206 UV/purple LEDs designed for PCB design and pick-and-place testing. The LEDs emit violet light in the 400–405 nm range with approximately 20 mcd output. Best for prototyping boards needing visible purple indicators. Caution: not a true UV source for curing or fluorescence activation.

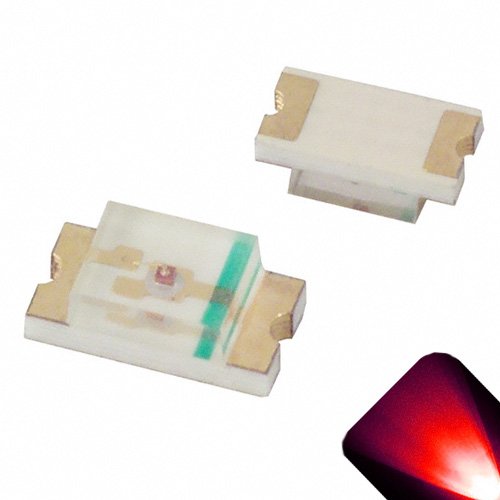

1206/3216 SMD Red LED (Pack of 50)
Red indicator LEDs in a 1206/3216 footprint suitable for compact PCBs. The LEDs provide strong red light at 625–630 nm with wide viewing angles. Best for status indicators and panel lighting. Caution: ensure compatibility with your board’s drive current and voltage specs.
Buying Guide: Key Considerations For Automated Pick-and-Place Decisions
- Automation scope: Choose modular heads for easy scaling or integrated modules for compact lines. Consider whether you need vacuum, mechanical gripping, or both.
- Payload and precision: Match motor sizes (28/35/42/57) to the weight and speed requirements of your components. Confirm controller compatibility with drivers like FYQM302A.
- End effectors: Vacuum suction works well for small parts; a mechanical gripper or soft-jaw design suits delicate or irregular shapes. Consider the part range and cycle speed.
- Space and installation: Integrated vacuum generators and compact end-effectors save space and simplify piping. External units add complexity but may offer higher flow in some cases.
- PCB and electronics compatibility: For board assembly, use SMD LEDs and parts that fit standard footprints to ensure smooth pick-and-place performance and reflow soldering compatibility.
- Support and compatibility: Verify motor drivers, control software, and mounting interfaces with your existing robotics system or PLC. Check for firmware and documentation availability.
Frequently Asked Questions
- What is a pick-and-place head? A pick-and-place head is a robotic end effector designed to pick up components and place them on a target substrate, often using vacuum, mechanical grippers, or a combination.
- Which end effector is best for delicate parts? Soft-grip or multi-jaw pneumatic grippers provide gentler handling for fragile components, reducing the risk of damage.
- Do I need a vacuum generator? Vacuum generators can simplify design by integrating suction directly into the head, reducing external piping and space requirements.
- What should I consider when choosing motor sizes? Larger stages can handle heavier components and faster placement, but require more torque and higher control capability. Match motor size to part weight and cycle goals.
- Are LEDs suitable for PCB testing with pick-and-place machines? Yes, SMD LEDs in standard footprints are ideal for testing PCB assembly workflows and alignment during placement.
- Is driver compatibility important? Yes. Ensure the motor driver and controller interface with your existing control system to avoid integration issues.
