When selecting a gear operated butterfly valve, the right choice depends on application, material compatibility, and operating pressure. This guide highlights five solid options suited for industrial piping and irrigation systems, focusing on durability, ease of operation, and maintenance needs. Best for heavy-duty industrial lines, best for irrigation projects, and best for compact installations—these valves cover a range of sizes and configurations. The table below briefly compares each pick to help buyers decide quickly.
| Product | Size | Material | Key Benefit |
|---|---|---|---|
| 3″ Cast Iron Valve, Gear Operated | 3″ | Cast iron with EPDM seat | Gasket-free seating and epoxy coating |
| IrrigationKing RKG6, Gear/Wheel | 6″ | Cast iron body, EPDM seat | Reliable gear/wheel actuation for irrigation mains |
| 12″ Cast Iron Valve, Gear Operated | 12″ | Cast iron with EPDM seat | High-flow capability and epoxy protection |
| IrrigationKing RKLO3, Lever Style | 3″ | Cast iron body, EPDM seat | Simple lever operation for quick shutoff |
| LEIFIDE 4″ Ductile Iron Valve, Wafer | 4″ | Ductile iron, nickel-plated | Space-saving wafer design and high-temperature tolerance |
3″ Cast Iron Valve Lug Style With Gear
Product: 3″ Cast iron Butterfly Valve Lug Style – EPDM Seat, Gear Operated
Brand: Valveking
Features: Does not require flange gaskets thanks to EPDM seat, Fusion-Bonded Epoxy Coating
Best for: Systems needing gasket-free installation between flanges and robust epoxy protection. The epdm seat supports a tight seal without separate gaskets, making it suitable for municipal or irrigation pipelines where gasket maintenance is a concern.
Why selected: This compact lug-style design pairs a durable EPDM seat with a protective epoxy coating, contributing to corrosion resistance and long service life in exposed environments. Gear operation offers precise control for shutoff and throttling.
Caution/limitation: Lug style may require accurate flange alignment; ensure flange compatibility and correct bolt pattern before installation.

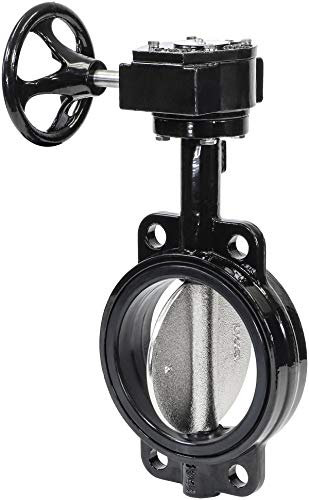

IrrigationKing RKG6 Gear Valve, 6″
Product: IrrigationKing RKG6 Cast Iron Butterfly Valve, Gear/Wheel, EPDM, Black, 6″
Brand: IrrigationKing
Features: Cast iron body, Nickels plated disc, Epdm gasket seat
Best for: Large-diameter irrigation mains and farm irrigation systems where dependable wheel/gear control is preferred for frequent operation.
Why selected: A sturdy cast iron body paired with a nickel-plated disc reduces wear, and the EPDM seat provides reliable sealing. Gear/Wheel operation gives intuitive leverage for multi-turn shutoff in larger lines.
Caution/limitation: Heavier valve due to cast iron construction; ensure adequate support in the piping design and torque limits for long-term operation.
12″ Cast Iron Valve Lug Style, Gear
Product: 12″ Cast Iron Butterfly Valve Lug Style – EPDM Seat, Gear Operated
Brand: Valveking
Features: Does not require flange gaskets thanks to EPDM seat, Fusion-Bonded Epoxy Coating
Best for: Large-diameter water or chemical piping where gasket-free operation and protective coatings matter for longevity.
Why selected: The combination of EPDM seating and epoxy coating delivers a durable seal and corrosion resistance in exposed environments. The lug style supports multiple bolt patterns for compatibility.
Caution/limitation: Larger size increases installation complexity; confirm flange alignment and structural support in the installation site.
IrrigationKing RKLO3 Lever Valve, 3″
Product: IrrigationKing RKLO3 Cast Iron Butterfly Valve, Lever Style, EPDM, Black, 3″
Brand: IrrigationKing
Features: Cast iron body, Nickels plated disc, Epdm gasket seat
Best for: Small to mid-size irrigation lines where quick, hands-on shutoff is advantageous and lever operation is preferred for fast maintenance checks.
Why selected: Lever action typically offers immediate feedback and simple operation for users who perform frequent on/off tasks, while the EPDM seat supports reliable sealing in standard irrigation conditions.
Caution/limitation: Lever style may require more space around the valve for full range of motion; ensure adequate clearance in the installation layout.
LEIFIDE 4 Inch Ductile Iron Wafer Valve
Product: LEIFIDE 4 Inch Ductile Iron Body Butterfly Valve Wafer, 200 Psi
Brand: LEIFIDE
Features: Nickel-plated resilience, wafer design for alignment, PN16 up to 100°C
Best for: Industrial systems requiring space efficiency and robust performance under higher pressures and temperatures.
Why selected: The nickel-plated ductile iron body provides durability and corrosion resistance, while the wafer design simplifies alignment between flanges and reduces space requirements in tight installations.
Caution/limitation: Wafer valves rely on compatible flange widths; verify flange standard and bolt pattern before purchase.
Buying Guide: Key Purchase Considerations
- Valve body material: Cast iron and ductile iron offer durability for water, irrigation, and some chemical services; ductile iron with nickel plating enhances corrosion resistance in harsher environments.
- Seating material: EPDM seats are common for water and irrigation; ensure chemical compatibility with the fluid in your system.
- Actuation method: Gear-operated valves give strong torque and precise control; lever-style offers quick operation for small lines; wheel or gear wheels are better for frequent adjustments on larger valves.
- Connection type: Lug style, wafer, and flanged designs vary in installation complexity. Lug styles require matching flange patterns; wafer valves need proper flange alignment but save space.
- Pressure and temperature: Check PN ratings and temperature ranges to ensure the valve suits your pipeline conditions. Industrial settings may require higher PN and temperature tolerance.
- Coatings: Fusion-bonded epoxy coatings improve corrosion resistance and longevity in harsh environments.
- Maintenance and installation: Consider gasket requirements, bolt patterns, and available space around the valve for service access.
FAQ
- What is a gear operated butterfly valve best for?
– Best for applications requiring controlled, durable shutoff and throttling in medium to large pipes, where steady torque from a gear mechanism provides precise operation. - How do EPDM seats affect performance?
– EPDM seats offer reliable sealing for water and irrigation; they perform well within typical temperature ranges but may have limitations with aggressive chemicals. - When should I choose a wafer valve over a lug style?
– Wafer valves save space and are easier to align between flanges; lug valves provide flange mating features that help when bolting between two flanges is necessary. - What maintenance considerations are there for these valves?
– Regular inspection of seals, disc movement, and coating integrity helps prevent leaks; ensure correct torque on bolts and verify flange alignment periodically.
Each product in this guide serves a distinct role in gear operated butterfly valve selections. Use the buying considerations to compare compatibility with your piping system, then choose the valve configuration—lug, wafer, or lever—that matches your installation constraints and maintenance plans.
