Finding the right AC right-angle gearmotor depends on your load, voltage, and speed needs. This guide highlights five solid options and explains who each is best for, with clear comparisons to help you decide quickly.
Quick reference: the table below lists the five featured gearmotors, their primary specs, and ideal use cases.
| Product | Horsepower | Voltage | Gear Ratio | Best For |
|---|---|---|---|---|
| BODINE 0618 1/8 HP | 0.125 HP | 115 VAC | 20:1 | Light to moderate loads in 115V systems |
| Leeson M1145039 | 0.167 HP | 115/230V | 20:1 | General-purpose right-angle drive |
| BODINE 0623 1/8 HP | 0.125 HP | 115 VAC | 10:1 | Compact, lower-speed tasks |
| BODINE 0489 | 0.067 HP | 115 VAC | 15:1 | Smaller payloads with reliable performance |
| BODINE 0490 | 0.125 HP | 115 VAC | 20:1 | Mid-range torque in 115V systems |
BODINE Electric 0618 Right Angle Gearmotor
This unit is a compact 1/8 horsepower drive designed for 115-volt operation, with a 20:1 gear ratio and 85 RPM output. Its 42R4BFSI-5L family designation signals a standard, versatile member of the AC right-angle lineup. Best for light to moderate loads in single-phase 115V systems. Choose this if you need dependable, straightforward performance in a compact package. A potential limitation is that higher-torque applications may require a higher HP model or lower speed target.

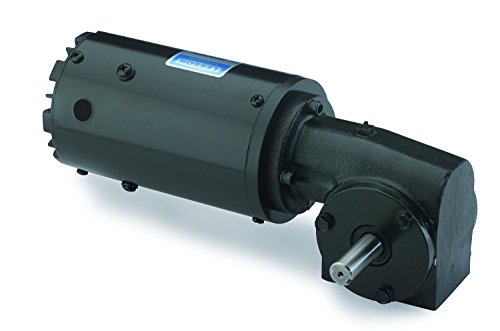

Leeson M1145039 Right-Angle AC Gearmotor
Leeson offers a permanent split capacitor design with a precision-machined aluminum gear housing. It runs on 115/230V and 60/50 Hz, allowing flexibility for international or mixed-use setups. The long-life worm gear with bronze wheel construction supports steady operation in a compact format. This model is best for general-purpose applications in factories or workshops that require reliable performance at common voltages. It’s especially suitable for tasks where quick, consistent speed reduction is essential. A limitation is that some users may need additional cooling for heavy-duty use over extended periods.

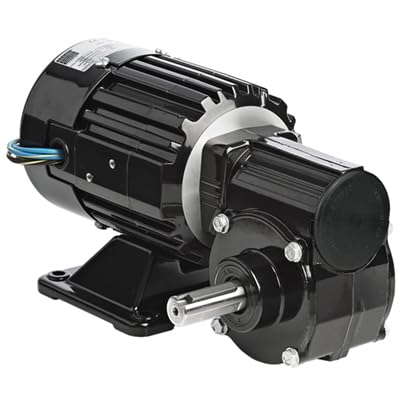

BODINE Electric 0623 Right-Angle Gearmotor
With a slightly higher current at 1.7 amps and the same 1/8 HP rating, this unit offers a 10:1 gear ratio for applications needing a bit more torque at lower speeds. Best for compact setups where space is at a premium but a bit more torque is required than the 20:1 configurations. Use this if you must fit within tight mechanical envelopes and still want dependable single-phase operation. A note: the lower gear ratio means higher output speed than some 20:1 models, which may not suit very slow-speed tasks.
BODINE Electric 0489 Right-Angle Gearmotor
This model is a compact 1/15 HP drive at 115 VAC with a 15:1 gear ratio and 20 lb-in output. It’s best for light-duty conveyors, small feeders, or precise positioning tasks where space constraints and modest torque are both key. The lower horsepower suggests which loads are feasible; avoid this option for heavy or high-torque duties.
BODINE Electric 0490 Right-Angle Gearmotor
This 1/15 HP unit delivers 20:1 gear reduction at 115 VAC with 27 lb-in output. It fits mid-range torque needs or tasks that require stable speed reduction without taking on a large footprint. Best for smaller automated lines or packaging tasks where space and moderate load are balanced. A limitation to watch is potential heat buildup in sustained high-load scenarios; ensure adequate cooling in enclosed spaces.
BODINE Electric 0630 1/4 HP Right-Angle Gearmotor
Engineered for higher torque at the same platform, this 1/4 HP drive operates at 230 VAC with a 10:1 gear ratio and hints at versatility for heavier packaging, small conveyors, or automated handling. Best for users who require more power in a single-phase AC solution. A limitation might be greater physical size and higher voltage requirements; ensure compatibility with existing electrical infrastructure.
BODINE Electric 2336 Right-Angle Gearmotor
This unit stands out with 3-phase operation at 230 VAC and a 280:1 gear ratio, yielding a very low output speed (6 RPM) suitable for precise, slow-motion tasks. Best for high-torque needs at extremely low speeds or for applications like machine feeds and micro-positioning. It is heavier and more complex than single-phase options, so ensure the control system accommodates 3-phase power. A limitation is the very low RPM, which may require different mechanical gearing for certain tasks.
Buying Guide: Key Considerations For AC Right Angle Gearmotors
- Power and torque: Match horsepower and torque to your load. Higher gear ratios reduce speed but increase torque; ensure the motor can handle sustained duty cycles.
- Voltage and phase: Choose single-phase 115 VAC for most small workshops, or 230 VAC for higher power needs. If you have three-phase power, 2336’s 3-phase option may be advantageous.
- Gear ratio and output speed: Consider the required RPM. Very low speeds (like 6 RPM) are possible with high gear reductions, while faster outputs require lower ratios.
- Physical footprint: Some models are compact, while others are larger due to higher HP or heavier gear housings. Ensure fitment within your equipment enclosure.
- Durability and cooling: Look for robust gear housings and, if possible, designs with sufficient cooling for continuous duty or enclosed spaces.
- Application environment: Choose corrosion-resistant finishes or sealed designs if used in humid or dusty environments.
Buying Questions And Answers
- Q: Which gearmotor is best for light packaging tasks on 115V? A: The BODINE 0618 or 0490 models are well-suited for light to moderate loads at 115V, with different gear ratios to fit speed needs.
- Q: Do I need three-phase power for high-torque tasks? A: For very high torque at low speeds, the 2336 model offers 3-phase operation, but verify your facility’s power availability.
- Q: How do I choose between 10:1 and 20:1 gear ratios? A: 10:1 provides higher output speed with moderate torque; 20:1 reduces speed further and increases torque, useful for conveying or precise positioning.
- Q: Can these motors operate in continuous duty without overheating? A: Cooling considerations vary by model; ensure adequate ventilation and avoid enclosed spaces when running near rated loads.
- Q: Are there compact options for tight installations? A: Yes, several 1/8 HP models (like the 0618 and 0623) are compact and suitable for space-limited setups.
- Q: Which model supports international voltage? A: The Leeson M1145039 supports 115/230V, offering flexibility for different power networks.
These AC right-angle gearmotors span a range of power, speed, and mounting needs. When selecting, prioritize load requirements, supply voltage, speed targets, and available space to ensure reliable performance over time.
