Answering the need for efficient, space-saving 90-degree conveyor turns, this guide highlights five reliable options. These conveyors are best for small facilities, tight production lines, and warehouse loading areas where a 90-degree turn helps optimize flow. Each product is evaluated for who it suits best, plus practical caveats. The summary table below helps compare core specs at a glance.
| Product | Best For | Key Benefit | Potential Limitation |
|---|---|---|---|
| HQHAOTWU 90 ° Change Direction Conveyor | Small shops and light manufacturing | Flexible direction change with adjustable speed | Industrial-grade controls may require setup |
| WYDDDARY 90° PVC Flat Belt Conveyor | Medium-duty transport in tight spaces | Anti-static belt for handling varied loads | Speed range tied to 750W governor |
| BREVELTION 110V 90° Conveyor System | Factories and packing lines | Wide application across industries; solid protection features | Heavier unit, may need mounting |
| YJEUZCD 90° Roller Conveyor (40cm) | Warehouses with smaller track widths | Rigid stainless frame; strong load bearing | Non-powered; needs integration with other conveyors |
| XILYZMO 90 Degree Grivity Roller Conveyor | Rigorous daily material handling | High-density rollers and robust frame | Heavier and taller footprint |
HQHAOTWU 90 Degree Change Direction Conveyor
The HQHAOTWU model offers a 90-degree change in transportation direction, designed for tight spaces and obstacle-rich production floors. It features a 750W variable frequency governor for speed control, with an adjustable range of 3–15 meters per minute to synchronize with other machinery. The belt uses a wear-resistant PVC surface that remains elastic and resists deformation, ensuring longer belt life in demanding environments. An air switch adds short-circuit and overload protections to safeguard the system’s electrical circuit. Best for small workshops or lines that need a flexible routing option without expanding floor space.
- Who it’s best for: Small manufacturers, contract packagers, or workshop setups needing a quick directional change on a compact line.
- Why selected: Combines 90-degree routing with adjustable speed and protective electrical features in a PVC belt package.
- Limitations: May require a stable mounting base and proper electrical setup for optimal protection.
YJEUZCD 90° Roller Conveyor With Raised Side Guardrails (30cm)
This 90-degree curved roller conveyor uses a reinforced welded stainless steel frame and high-density ABS plastic rollers, providing robust support for frequent unloading tasks. The raised side guardrails help prevent items from slipping off during the turn, making it suitable for unloading boxes, crates, or cartons in warehouse environments. The design emphasizes durability and clean edge sealing to maintain reliability during daily runs. Best for loading docks or warehouse bays where turn efficiency and edge protection matter.
- Who it’s best for: Warehouse teams performing frequent 90-degree turns with varied box sizes.
- Why selected: Strong frame, sealed edges, and raised guardrails for safety and stability.
- Limitations: Non-powered segments rely on gravity or upstream conveyors for movement; plan integration accordingly.

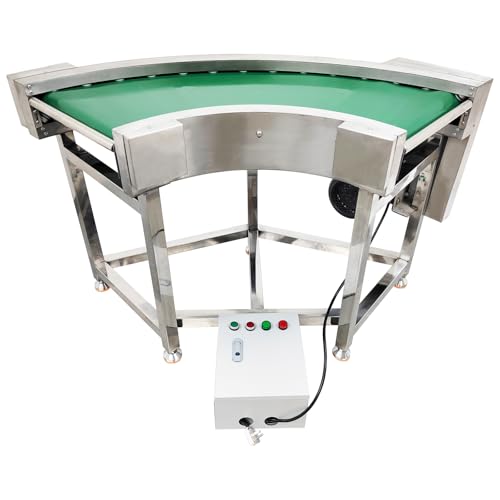

WYDDDARY 90° PVC Flat Belt Conveyor
The WYDDDARY model emphasizes a 90-degree turn with a 750W variable frequency governor, offering a speed range from 3 to 15 meters per minute. The belt is an anti-static PVC type that resists wear and deformation, which helps maintain consistent belt tension and track alignment. This unit suits facilities that require a turn without sacrificing belt longevity or static discharge control. Best for precision handling of mixed-item loads in tight shop floors.
- Who it’s best for: Light to medium-duty operations where static control is beneficial.
- Why selected: Anti-static belt and adjustable speed make it versatile for various product types.
- Limitations: Anti-static properties depend on belt condition; monitor wear and grounding setup.
BREVELTION 110V Industrial Conveyor System
This 90° change-direction conveyor from BREVELTION combines a stainless steel frame with PVC belt for broad industrial use. It lists a 11.8-inch (30 cm) belt width and overall dimensions that support longer runs with a 3–15 m/min speed range controlled by a 750W governor. The control box and air switch provide overload and short-circuit protection, enabling safer operation in packing lines, mining, chemical, or food processing contexts. Best for facilities seeking a compact yet capable change-direction solution with robust protection features.
- Who it’s best for: Production lines requiring a versatile, guard-protected 90° turn in varied industries.
- Why selected: Wide application range and built-in safety protections make it a strong all-around option.
- Limitations: Heavier and potentially bulkier; ensure floor mounting or rail compatibility.
YJEUZCD 90-Degree Curve Roller Conveyor (60cm)
This 90-degree curve offers a non-powered skate wheel setup with a stainless steel frame, designed for reliable unloading and turning. The thicker stainless frame provides strength, while the wear-resistant PE rollers reduce friction and minimize marking or damage to transported items. It’s well-suited for loading bay turns and areas where a powered drive is not required or available. Best for integrating into existing lines that need a smooth corner transition without adding drive motors.
- Who it’s best for: Facilities adding a dedicated turn section to an existing non-powered conveyor line.
- Why selected: Durable frame and low-friction rollers for steady, gentle handling.
- Limitations: Lacks drive; plan companion conveyors or powered segments to move loads.
YJEUZCD 90-Degree Curve Roller Conveyor (50cm)
Designed for smooth 90-degree turns, this model emphasizes a robust stainless steel frame and PE rollers for wear resistance and quiet operation. The 50 cm width offers a middle-ground option for compact warehouses and production lines. The non-powered design makes it a good fit for systems that use powered upstream conveyors. Best for light-to-medium loads where a compact turn is needed without adding additional drive machinery.
- Who it’s best for: Facilities requiring a tight 90° turn with a reliable, low-maintenance section.
- Why selected: Balanced width and durable components support steady throughput.
- Limitations: Non-powered; must be driven by other equipment in the line.
XILYZMO 90 Degree Grivity Roller Conveyor
The XILYZMO unit is a heavy-duty 90-degree grivity roller conveyor designed for seamless cornering with a robust stainless steel frame and PP wheels. It features a high-density roller arrangement to manage heavy loads as part of a modular material handling system. The design reduces derailment risk and provides a reliable turn for consistent workflow. Best for high-demand warehouses and packing lines where corners are frequent and heavy items are common.
- Who it’s best for: Daily heavy-duty material handling in busy distribution centers.
- Why selected: High-density rollers and metal frame support long-term durability.
- Limitations: Heavier footprint; ensure space and mounting considerations are met.
Buying Guide
Key considerations when choosing a 90-degree turn conveyor include load capacity, drive requirements, belt or roller type, and installation footprint. If space is scarce, prioritize compact widths and one-piece curved sections that minimize gaps and misalignment. Consider whether a powered segment is needed or if a non-powered section will integrate with existing lines.
- What load will you move? Select a unit rated for your heaviest items to avoid belt or roller deformation.
- Do you need a powered or non-powered turn? Powered turns offer control, but non-powered turns work well with upstream conveyors.
- What environment will it operate in? Stainless steel frames and anti-static belts are favored in harsh settings and electronics assembly.
- What is your space and layout? Measure width, turning radius, and mounting options to ensure proper fit.
- How will you protect the system? Look for air switches with overload protection or short-circuit protection for reliability.
FAQ
What is a 90-degree turn conveyor used for?
It redirects items around tight corners in warehouses or production lines, improving space efficiency and flow.
Do these conveyors require power?
Some models are powered with adjustable speeds; others are non-powered and rely on upstream conveyors or gravity.
What belt types are common?
PVC belts are common for wear resistance; anti-static variants suit static-prone environments.
What maintenance is typical?
Regular inspection of belts or rollers, tension checks, and lubrication for moving parts are typical.
How do I choose width?
Choose a width that matches your largest item footprint plus a safety margin for handling and alignment.
