The best 5-port solenoid valves provide reliable, quick-acting control for pneumatic and hydraulic lines. This guide highlights five solid choices ideal for automation, machinery, and DIY projects. Each product is suited for users needing 5-way, 2-position control with pilot operation and robust construction. Use this to compare coil voltage, material, and mounting to pick the right unit for your system.
| Product | ||
|---|---|---|
| TAILONZ PNEUMATIC 4V210-08 DC24V (Junction Box) | DC24V | 5/2 |
| RIH Pneumatics Solenoid Valve 4V210-08 (DC24V/Out of line) | DC24V | 5/2 |
| uxcell AC 24V 5 Way 2 Position 1/4″ PT | AC24V | 5/2 |
| BLCH PNEUMATIC Solenoid Valve 4V210-08 DC12V | DC12V | 5/2 |
| LOYALGLORY 529163 5-Port Direct Replacement | Various (depending on model) | 5/2 |
TAILONZ PNEUMATIC 4V210-08 DC24V Valve
Product Name: 2-Position 5-Way Solenoid Valve with Junction Box. Voltage: DC24V. Working pressure 25–116, Fahrenheit range 32–140. Working principle: when the coil is powered off, the valve stays open; when powered on, it closes. Best for: automation setups requiring a compact, junction-box mounted solenoid valve with reliable open-when-off behavior.
Who it’s best for: systems needing a ready-to-wire, space-efficient 5/2 valve with a protective junction box. Why selected: robust enclosure and standard 1/4″ NPT ports suit many pneumatic circuits.
Limitation: ensure correct coil voltage and enclosure suitability for outdoor or harsh environments, as service life depends on mounting and wiring quality.
RIH Pneumatics 4V210-08 DC24V Valve (Out of line)
Product Name: 2-Position 5 Port Solenoid Valve. Voltage: DC24V. Working pressure 25–116 Fahrenheit; Working temperature 32–140. Working principle: coil off opens, coil on closes. Best for: industrial pneumatics that require aluminum alloy body for stability and a durable copper coil.
Who it’s best for: heavy-duty environments where stable operation and faster response are needed. Why selected: aluminum alloy body provides stiffness, and the valve is designed for responsive control in demanding cycles.
Limitation: check that 24V control logic matches existing control hardware to avoid miswiring or compatibility issues.

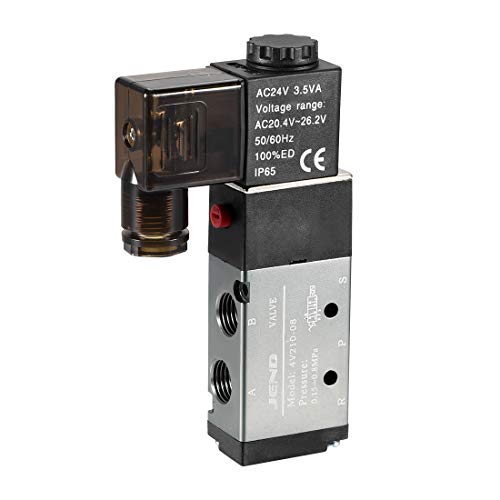

uxcell AC 24V 5 Way 2 Position Solenoid Valve
Product Name: 5 Port 2 Position Pneumatic Valve, Internally Single Piloted Acting Type. Voltage: AC 24V. Exhaust hole 1/8″ G; Air flow inlet 1/4″ PT. Material: Aluminum alloy body with good corrosion resistance and heat dissipation. Best for: projects needing a universal, high-frequency switching valve with good heat management.
Who it’s best for: makers and technicians seeking a versatile, compact valve for quick pneumatic control. Why selected: alloy body and quick response support smooth operation in repetitive cycles.
Limitation: AC operation may require different control wiring and safeguards against voltage spikes; ensure proper isolation in control panels.
BLCH PNEUMATIC 4V210-08 DC12V Valve
Product Name: 2 Position 5 Way Solenoid Valve with Outlet wire. Working pressure 25–116 PSI; Temperature 0–140°F. Voltage DC12V. Port sizes: 1/4″ NPT for intake, outlet, and exhaust. Best for: compact control needs where DC12V is standard and wiring simplicity is key.
Who it’s best for: small automation rigs or replacement parts in existing equipment using 12V coils. Why selected: compact 1/4″ NPT ports and included mufflers provide straightforward upgrades.
Limitation: operation at the lower 12V may limit speed or force compared with higher voltage options; confirm coil compatibility with your control system.
LOYALGLORY 529163 5-Port Valve — Heavy Duty
Product Name: 5-Port 30mm solenoid valve with manual override. Brass and steel construction for rugged use in hydraulic/pneumatic systems. Best for: heavy-duty mobile hydraulics where precise spool shifting is essential for equipment like snow plows or dump trucks.
Who it’s best for: operators needing a direct replacement with durable materials and a manual override for maintenance scenarios. Why selected: robust build resists wear in high-cycle environments.
Limitation: brass construction adds weight and may require anti-seizure lubrication in some installations; verify mounting space for larger assemblies.
Buying Guide: Key Purchase Considerations
- Voltage compatibility: match coil voltage (DC12V, DC24V, or AC24V) to your control system to avoid damage.
- Port and threading: confirm 1/4″ NPT ports and overall size fit your plumbing and mounting footprint.
- Valve type and operation: 5/2 or 5/3 configurations are common; choose based on whether you need pressurization, venting, or bi-directional flow control.
- Materials: aluminum bodies are lighter and corrosion-resistant; brass bodies offer durability in rugged environments; consider whether you need ruggedization for outdoor use.
- Environmental range: check temperature and pressure ranges to ensure reliable performance in your application.
- Maintenance features: some units include mufflers, connectors, or manual overrides—these can simplify installation and troubleshooting.
- Mounting and wiring: consider whether a junction box or direct-wiring valve best fits your control panel design.
Frequently Asked Questions
- What is a 5-port solenoid valve used for?
It controls a double-acting actuator by directing pressurized fluid or air to either side while venting the other side. - Why choose a 5/2 valve over a 5/3 valve?
5/2 valves have two states with two exhausts, suitable for simple on/off control, while 5/3 valves provide a neutral position for more complex timing. - What coil voltage should I pick?
Match coil voltage to your control electronics (12V or 24V DC, or 24V AC). Incorrect voltage can reduce performance or damage the coil. - How important is the material of the valve body?
Material affects durability, corrosion resistance, and heat management. Aluminum offers light weight; brass is robust for rugged environments. - Can these valves operate in outdoor or dusty environments?
Some models offer weather-resistant enclosures or mufflers; verify IP rating and enclosure features for outdoor use. - Is a manual override useful?
Yes, manual overrides enable operation during electrical failure and simplify testing and maintenance.
